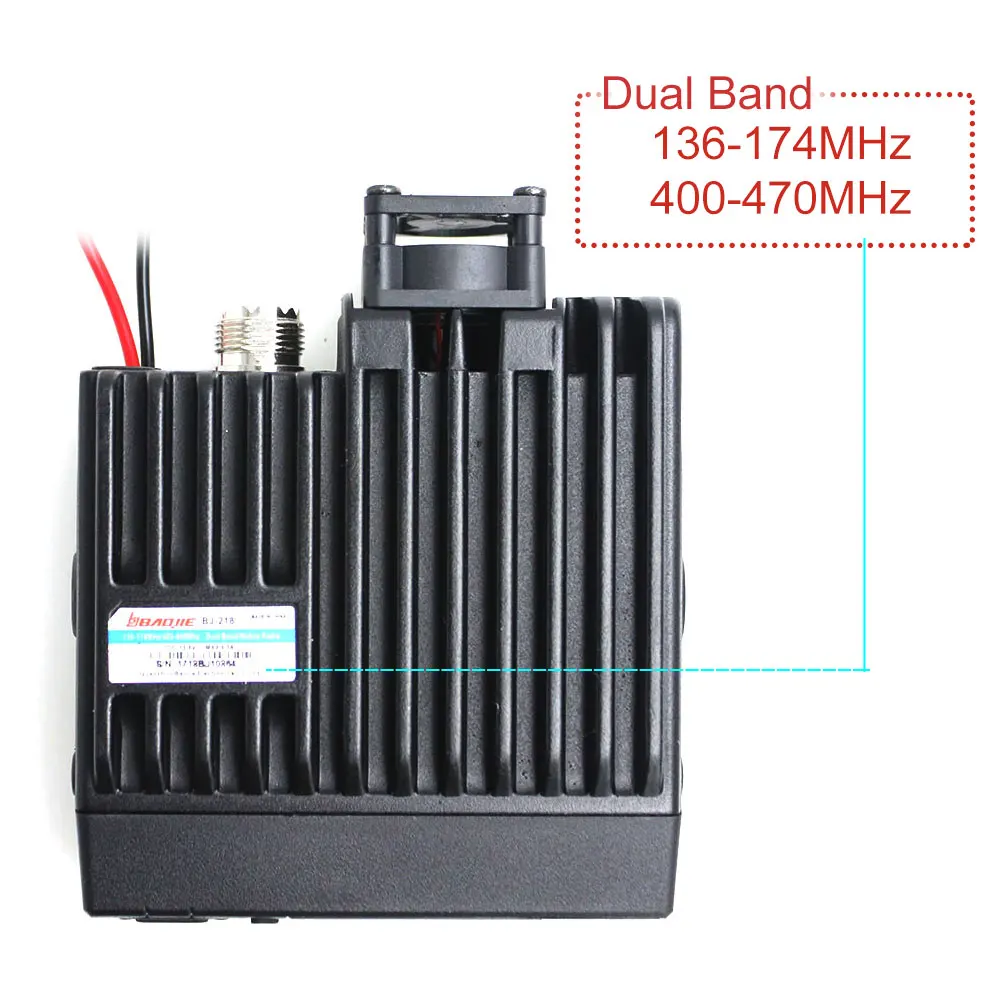

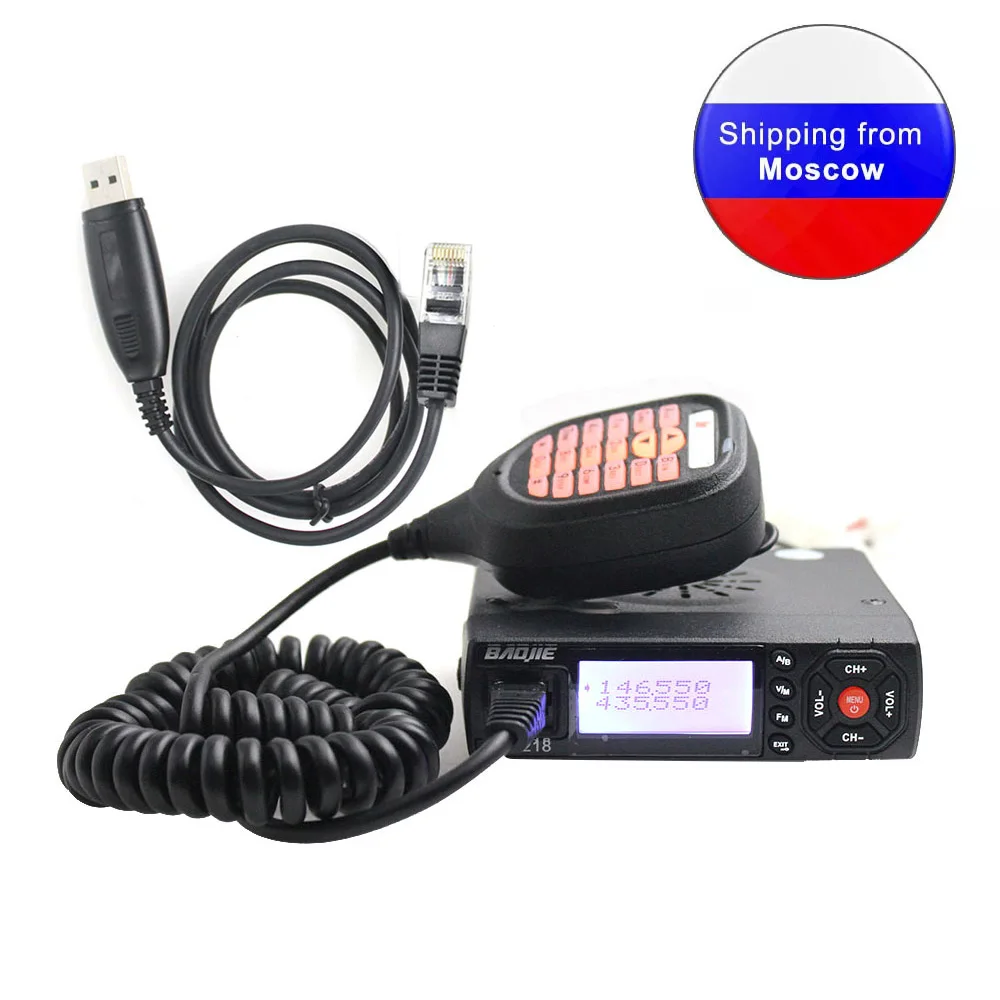

BAOJIE BJ-218 25W Output Power Dual Band 136-174 & 400-470MHz FM Radio
Note: if you need software, please contact us.
Specifications:
|
General |
||
|
Frequency Range |
RX: 76-108MHz(FM Radio) |
|
|
TX: 136-174MHz(Ham Band) |
||
|
Frequency Step |
2.5/5/6.25/10/12.5/15/20/25/50/100/200KHz |
|
|
Frequency Stability |
±2.5ppm |
|
|
Repeater Shift |
±600KHz (144MHz) |
|
|
Antenna Impedance |
50ohm |
|
|
Supply Voltage |
Nominal:13.8V DC (±15%), Negative Ground |
|
|
Output power |
High power:<=10W;middle power:<=6W;low power:<=3W |
|
|
Operating Temperature |
-20°C to +60°C(-4°F to+140°F) |
|
|
Case Size |
105x30x106mm(Width x Height x Depth and not included Projection) |
|
|
Weight(Approx) |
0.6kg |
|
|
Transmitter |
||
|
Maximum Deviation |
±5KHz |
|
|
Spurious Emission |
<=-60dB |
|
|
Microphone Impedance |
2Kohm |
|
|
Receiver |
||
|
Sensitivity |
2µV TYP for 12dB SINAD(76-108MHz,AM) |
|
|
Sensitivity |
<=0.2uv(12dB SINAD) |
|
|
Working current |
Receive |
0.3A(SQL) |
|
Transmit |
5A(Max) |
|
| Weight | 0.700 kg |
|---|---|
| Dimensions | 27 × 21 × 11 cm |
| Brand Name | BaoJie |
| Battery Capacity(mAh) | – |
| Origin | Mainland China |
| Waterproof / Water-Resistant | IP55 |
| Maximum Range | 10km-50km |
| Model Number | BJ-218 |
| Is_Display | Yes |
| Walkie Talkie Type | Car |
| Output Power(w) | 10w-25w |
| Material | plastic and metal |
| Storage Channel | 128 |
| Frequency Range | 136-174&400-470MHz |
| Dimensions | 105x30x106mm |
| Certification | CE |
