TIDRADIO H3 Walkie Talkie Phone APP Wireless Programming Dual PTT Air Band Long Range Radio USB Type-C Cable Programming &Charge

• Frequency Matching :With the frequency matching feature, you can easily communicate with other walkie talkies within the range of 5km-10km.

• Wireless programming via phone app ：The TIDRADIO H3 can be programmed to customize your TIDRADIO H3 anytime, anywhere via the mobile app “Odmaster”. The app also includes an automatic search function for nearby repeaters, which can be configured to your radio with a single click to increase the communication range, and there are many more features in the app for you to explore.

• USB Tpye-C Cable Charging & Programming: You can connect to a computer via an ordinary USB Tpye-C cable to perform programming and other operations without the need for a special programming cable, solving the trouble of not finding a programming cable. It also supports Tpye-C charging.

	Product features
1:	NOAA weather reception	25:	DTMF
2:	Fast linking	26:	DTMF ANI
3:	10 groups of voice encryption (scrambling)	27:	High, medium and low power options
4:	Large capacity battery/long standby time	28:	Receive and transmit signaling are set separately
5:	Lighting function	29:	Multiple step frequencies
6:	Reverse frequency operation function	30:	Initialize the settings
7:	Timeout timer	31:	Channel storage
8:	Transmits 1750 signals	32:	Computer programmable
9:	Frequency, channel mode conversion	33:	Tone switch
10:	199 channels	34:	AM/FM air segment reception
11:	Voice telegram	35:	FM radio
12:	Multi-segment transmit and receive	36:	Digital signaling CTCSS/DCS
13:	Automatic/manual emergency alarm	37:	Tpye-C Cable Charging & Programming
14:	Multiple scans	38:	VOX voice-activated emission function
15:	Difference frequency direction setting	39:	Automatic signaling search
16:	Difference frequency setting	40:	Busy and banned
17:	Wide and narrow band options	41:	Channel number, channel frequency, channel name Multiple display methods
18:	Squelch level setting	42:	Channel scan added
19:	Dual ptt	43:	Large screen dot matrix LCD display
20:	The backlight automatically turns off the selection time	44:	Transit desk forwarding confirmation function
21:	Cross-segment intercom function	45:	Boot password protection
22:	Wireless full machine replication	46:	Frequency meter function
23:	DTMF dialing	47:	That is, the call channel
24:	On-site programming	48.	Wireless programming via phone app

TIDRADIO H3 has a wireless programming function, anytime, anywhere in the mobile phone APP to achieve wireless programming.

Search & Share Repeaters

1.Amply the TX/RX signal

2.Compensate signal attenuation

3.Increased communication range

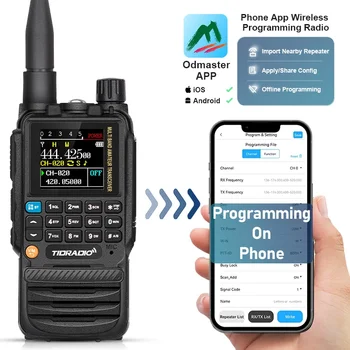

Quickly programme your radio from your mobile phone anytime, anywhere!

Step 1:Open Odmaster APP
Step 2: Connect the BL

Step 3: Program the radio

Inside the APP you can also

Import Local Repeaters with One Click
Use the mobile app Odmaster to import local nearby repeaters with one click for longer transmission distance.

In-App Sharing Configuration
Share programming configurations within Odmaster to quickly share complex custom features, provided your other radios support wireless programming. (If this feature is not available you can purchase a Bluetooth frequency writer)

TIDRADIO H3 It can be programmed by connecting to a PC via a normal USB Tpye-C cable, solving the problem of not being able to find a programming cable.

Fast Copy Frequency .

Fast Copy One Channel .

Act As Frequency Meter For Two-Way Radio & Some Other Devices .

Hold Down “1”, Turn On Frequency Copy .

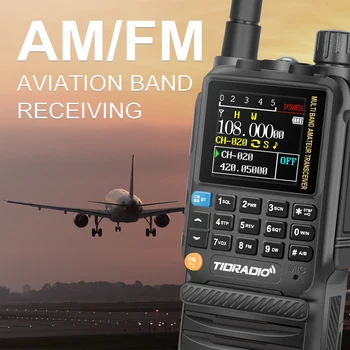

AM/FM Aviation Band Receiving .

Press and hold the * key and PTT key to turn on the power
Band version can be selected
HAM；GMRS；NORMAL

10-Group scrambler encryption for secure communications.

TIDRIDIO H3 radio is compact (102*51*30mm), sturdy, the unique feel of the pressure hand, rubber material dual PTT, high-quality touch at the same time to avoid accidental contact.

5W long range communication

High power/low power mode switching

NOOA weather reception .

10 Emergency Weather Channels .

Bring more convenience to your outdoor travel .

the Type-C port on the bottom of the battery supports Type-C charging!

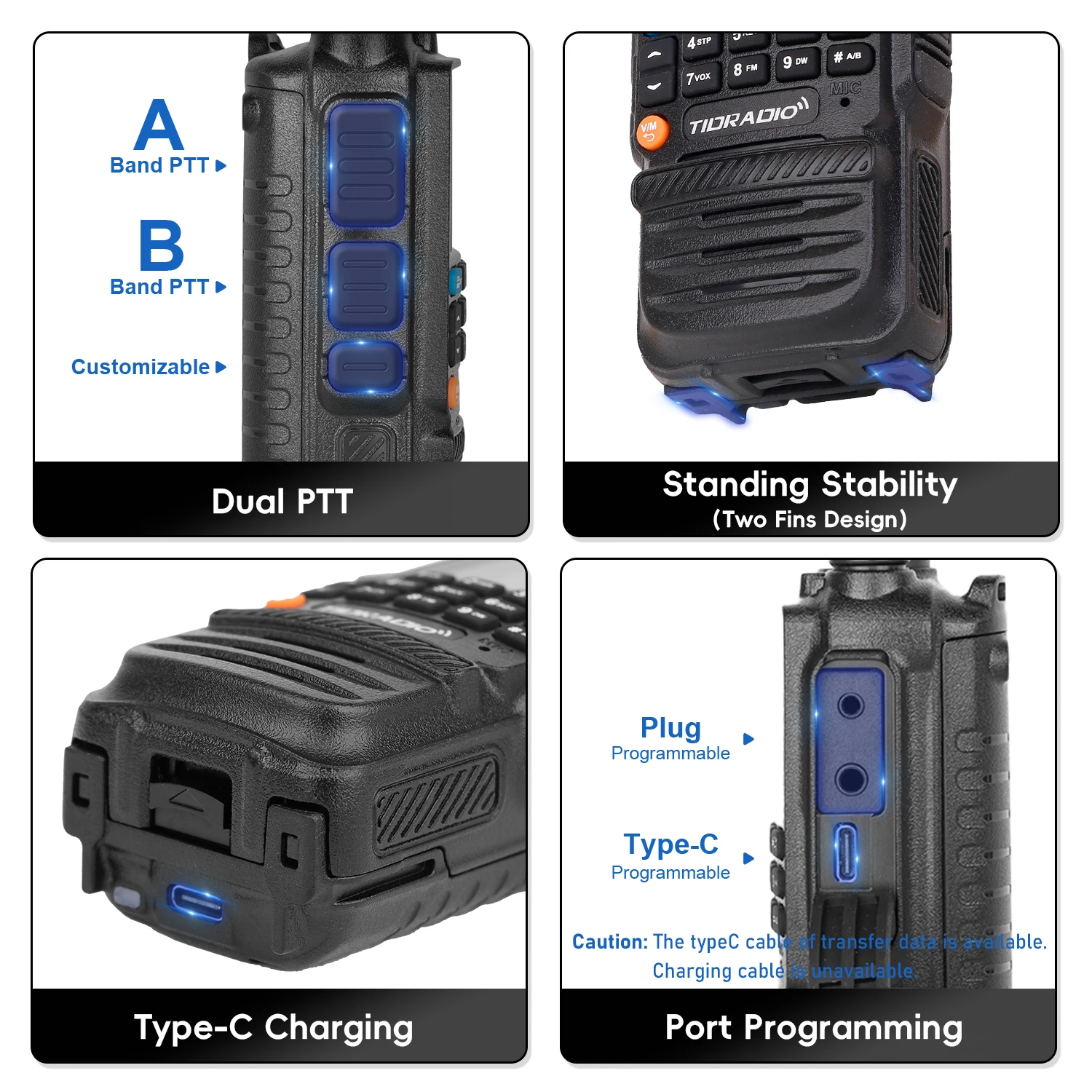

Dual PTT

No longer need to switch channels like traditional single PTT. One is used for channel A to send information, and the other is used for channel B

2500mAh battery
It can be fully charged in 3 hours
Can work continuously for 24 hours

The standby time exceeds 120 hours

In addition, TIDRADIO H3 also comes with many functions,Custom Side Keys, DTMF, Dual PTT …….

• Instruction manual PDF download address

https://tidodmaster.oss-us-west-1.aliyuncs.com/h3/H3-Ham%20Instruction%20Manual%20%28not%20updated%29%20-%20for%20reference%20only.pdf
